Low Voltage Panel Boards

Wall-mounted and floor-standing distribution panels, meter panels and site distribution panels from CASK Power Systems, manufactured to IEC 61439-2 and TS EN 61439-2 and type-tested for short-circuit performance.

Request a quotation Download the catalogue (PDF)

Wall-type panels

Compact, safe and practical power distribution for final circuits, plant rooms and buildings.

  • Standard: TS EN 62208
  • IP 55 protection
  • 1.2 mm DKP steel, RAL 7035 powder coat
  • Widths and heights from 300 to 1,000 mm; custom sizes to order

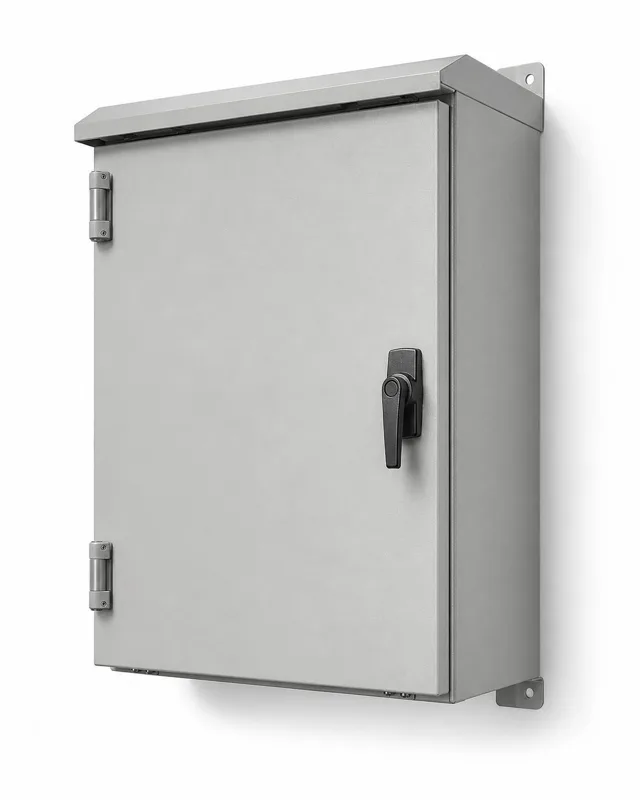

Wall-mounted low voltage distribution panel

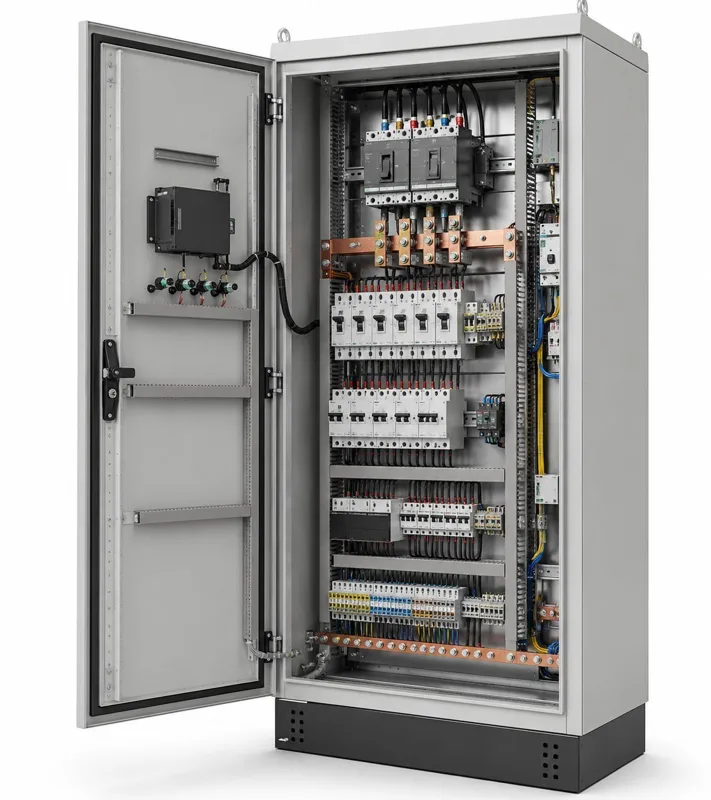

Floor-standing modular switchboard with breakers and busbars

Floor-standing modular panels

High-capacity panels for main and sub-main distribution, control, protection, metering and automation in industrial plants, commercial buildings, energy facilities, pumping stations and electrical rooms.

  • Spacious internal layout for breakers, busbars, relays, meters and terminals
  • Modular vertical sections, or fully welded on request
  • Widths and depths from 400 to 1,200 mm; indoor and outdoor versions
  • Front access for operation and maintenance

Meter panels and site distribution panels

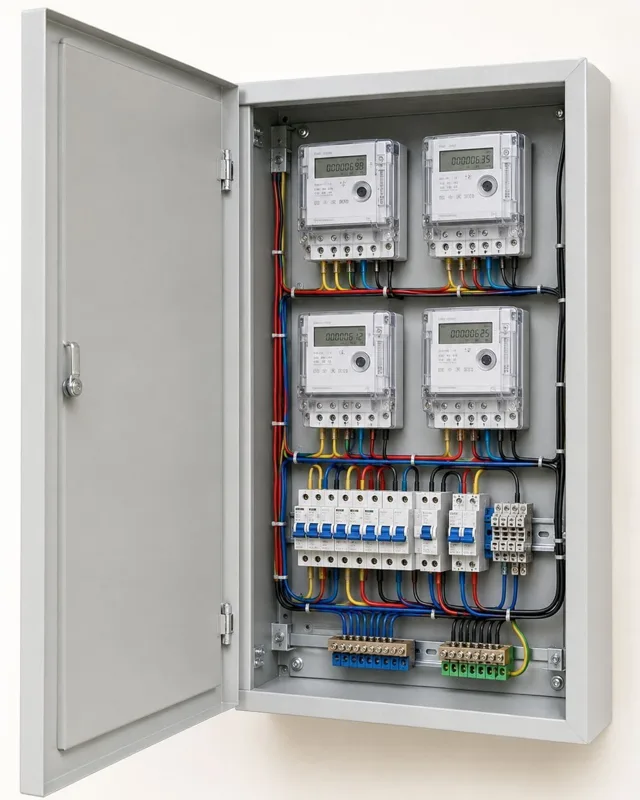

Multi-way electricity meter panel

Meter panels

4 to 24 meter ways with labelled meter windows, single-phase, three-phase, digital and CT metering. DKP or pre-galvanized steel, RAL 7035, wall or flush mounting, hinged door with single lock.

Outdoor site distribution panel with industrial sockets

Site distribution panels

Free-standing pedestal panels with weatherproof canopy for construction sites, industrial facilities and infrastructure. IP 44 to IP 55, DKP or galvanized steel, widths 400 to 1,200 mm.

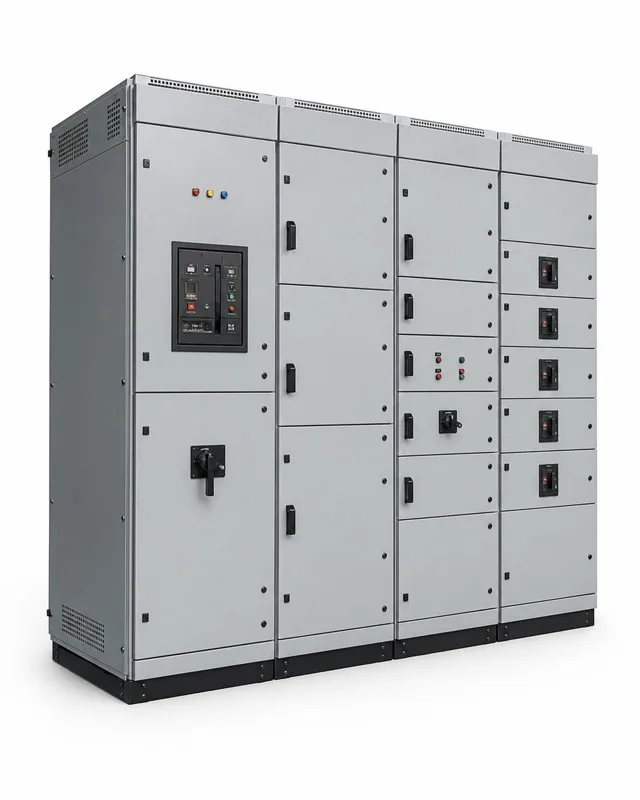

Line-up of floor-standing modular switchboard sections

Custom switchboards

Custom dimensions, RAL finishes and busbar configurations on every product line, built to your single-line diagram and project drawings.

Built to standard, tested for performance

StandardsIEC 61439-2 and TS EN 61439-2 for low voltage switchboards; TS EN 62208 for empty enclosures
Type testingType-test certification by accredited laboratories, confirming short-circuit withstand ratings of up to 120 kA for 1 second and 85 kA for 3 seconds
Enclosure1.5 to 2 mm DKP pre-galvanized or stainless steel, electrostatic powder coat in RAL 7035 as standard
Cable entry and IPGasketed, union or brush-sealed entries keep the rated IP protection; filtered ventilation sections
Busbars and wiringSized to current-carrying capacity, routed in enclosed ducts or secured with cable ties
DocumentationEvery enclosure, busbar section and circuit labelled to project drawings; routine and type-test reports issued for customer approval with each shipment

Frequently asked questions

Can you build panels to our single-line diagram?

Yes. Send us the single-line diagram, load schedule and preferred brands of switchgear components. Panels are built and labelled to your project drawings, with routine test reports for approval before dispatch.

Do you supply outdoor panels?

Yes. Outdoor versions of floor-standing panels, site distribution pedestals with weatherproof canopies, and IP 44 to IP 55 enclosures are available.

Which standard are your switchboards built to?

Low voltage switchboards are manufactured to IEC 61439-2 and TS EN 61439-2, with type-test certification from accredited laboratories.
