Cable Glands

Polyamide, brass, stainless steel, EMC, armoured and Ex d / Ex e explosion-protected cable glands, metric M12 to M75 and PG7 to PG48, with lock nuts, blanking plugs and accessories. Designed to EN 62444 and IEC 60529.

Request a quotation Download the catalogue (PDF) الكتالوج بالعربية (PDF)

A sealed cable entry for every enclosure

Cable glands keep water, dust and pull-out forces away from the terminals of panels, junction boxes, motors and machines. The CASK range covers safe and hazardous areas in 27 product families, from polyamide glands for control panels to compound-filled barrier glands for flameproof enclosures.

  • M12 to M75, PG7 to PG48
  • IP66 / IP68
  • Armoured cable glands
  • Ex d / Ex e for Zones 1, 2, 21, 22

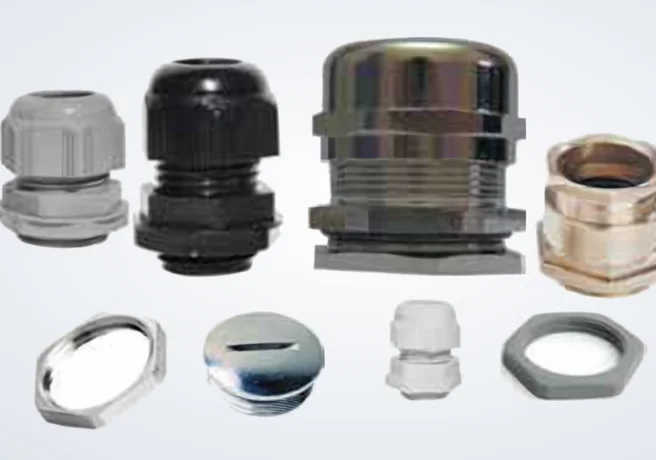

Polyamide, brass and stainless steel cable glands by CASK Power Systems

The range

Polyamide glands

IP68 glands in grey and UV-stabilised black for control panels, machines, solar and outdoor equipment, metric and PG thread.

Brass and nickel-plated brass

Metal glands for industry, switchgear, pumps, motors and outdoor equipment, IP68, plus economical IP55 types for indoor boards.

Stainless steel and EMC

AISI 316L glands for food, marine, offshore and chemical plants, and EMC glands with 360° screen contact for VFD and data cables.

Armoured cable glands

Outdoor double-seal and indoor single-seal glands for SWA, AWA, STA and braid armoured cables, with armour clamping for earth continuity.

Ex d / Ex e glands

Explosion-protected unarmoured, armoured and compound-filled barrier glands for gas Zones 1 and 2 and dust Zones 21 and 22.

Accessories

Lock nuts, blanking plugs, shrouds, earth tags, sealing washers, thread reducers and adaptors, and rubber grommets.

Materials and standards

  • Polyamide: PA 6, UL 94 V-2, halogen free; black grade UV resistant
  • Brass: CuZn39Pb3 to EN 12164, natural or nickel plated
  • Stainless steel: AISI 316L (1.4404)
  • Protection: IP66 / IP68 to IEC 60529
  • Standards: EN 62444, IEC 60079-0, -1, -7, -31 and -14, BS 6121-1, metric threads to EN 60423, PG to DIN 40430

Where they are used

  • Panel boards and switchgear
  • Motors and pumps
  • Oil, gas and petrochemical
  • Chemical plants
  • Marine and offshore
  • Food and beverage
  • Solar farms
  • Mining

Choosing the right gland

Measure the cable, match the entry thread, choose the material for the site and, in hazardous areas, the right Ex marking. The catalogue gives a selection guide, a material guide, an Ex marking guide and installation steps, with the sizes and part number of every item: English (PDF) · العربية (PDF)

Frequently asked questions

Which gland do I need for armoured cable?

An armoured cable gland: the outdoor double-seal type seals on the bedding and the sheath, the indoor single-seal type on the sheath. Both clamp the armour for earth continuity. Add a shroud and an earth tag where needed.

Do you supply glands for hazardous areas?

Yes. Ex d / Ex e glands for gas Zones 1 and 2 and dust Zones 21 and 22, including compound-filled barrier glands. ATEX and IECEx certificate numbers and the full marking are given with each order.

Is the catalogue available in Arabic?

Yes. Download the English or Arabic catalogue at the top of this page.

Related products

Low Voltage Panel Boards Control Panels & MV Switchgear Cable Lugs & Connectors All CASK Power Systems products

Need cable glands for a project?

Send us your cable schedule and the enclosure entries. We will propose the glands and accessories with their part numbers.
